VLSAT Base

Use all features for free 30 days
Simple license key upgrade

The VLSAT Base is the perfect introductory laser shaft alignment system for beginners and advanced users alike. With the VLSAT Base you receive the most common features for laser shaft alignment and can easily upgrade to more advanced features with a simple license key upgrade.

WEB QUICK START MANUAL

REQUEST A QUOTE

Trusted by engereering teams at:

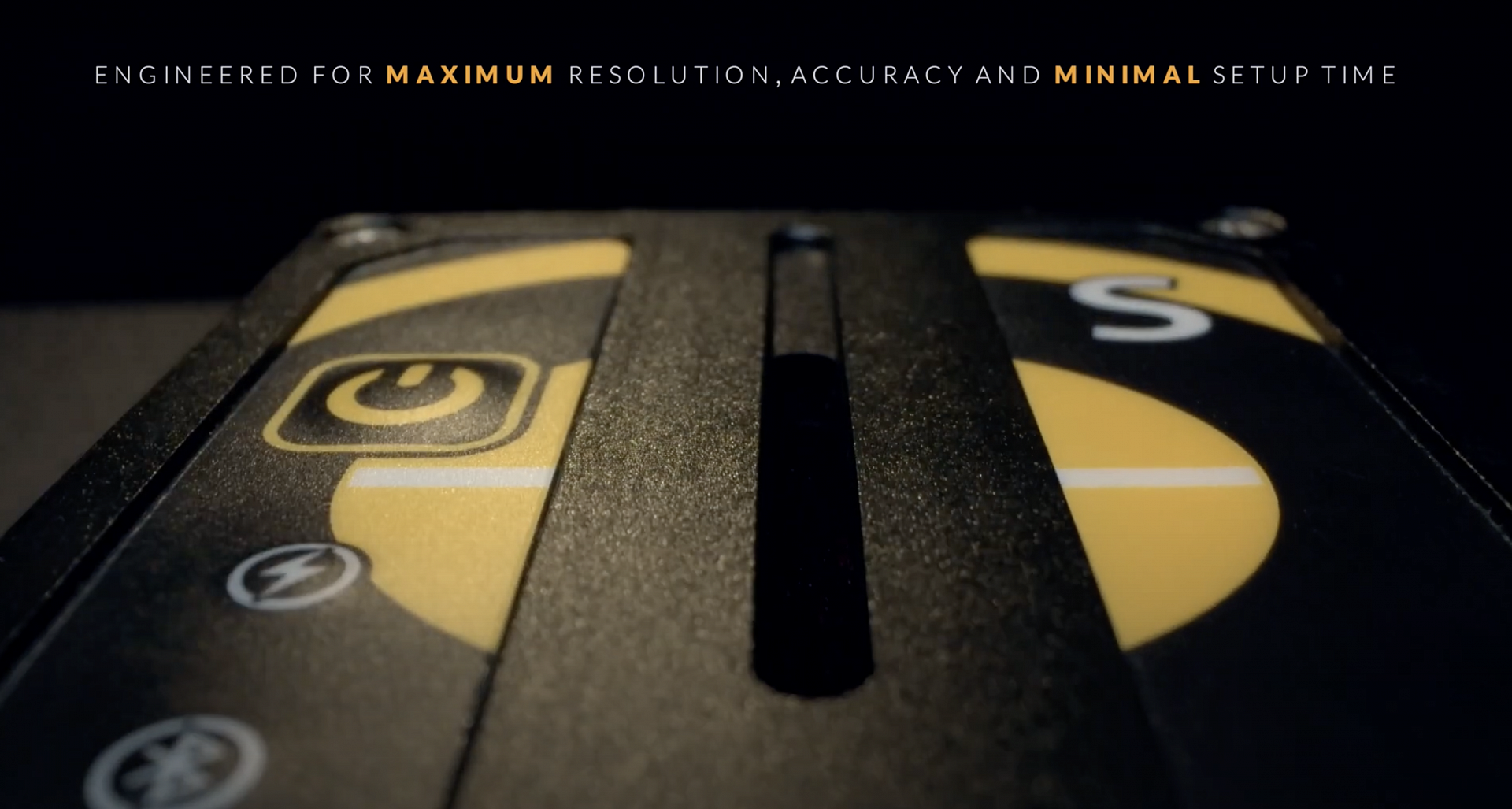

Intro video

Software

Horizontal alignmentA brand-new step by step, intuitive interface with 3D animation simplifies the operator's work and reduces time spent on alignment. A unique memory management system allows you to save progress at any stage of the process and resume whenever you want.

Clock methodAn alignment method which requires the measurements taken at any three of four preset clock positions (3, 6, 9 and 12 o'clock).

SmartAngle™ Take measurements at any three positions of the shaft rotation. Turn shafts in any direction at least by 20 degrees and register the results. This mode is extremely helpful when the clock method is off limits.

Vertical/Flange mounted machines Measure and align vertical and flange machines with a program specially created for this purpose.

Soft foot checkAdjust machine feet beforehand for better results. Soft foot check option is designed specifically for this job. The program analyzes the position of machine feet, indicates if any of them need adjustment, and saves all values for the further work.

User defined toleranceSpecify the alignment tolerance and user definable tolerances in advance according to the machine rotation speed.

SmartfilterKeep the alignment precise under any circumstances. The averaging filter reduced the influence of external visual challenges such as lighting, steam, and other visually impairing variables while taking measurements.

VibeDr™VibeDr filters vibration related influences that can negatively impact precision alignment thus insuring the machines in the same proximity do not adversely affect your alignment job.

Sensor readingsMonitor the data coming directly from the measuring units on the screen of your device.

Save job Save Job Feature - Allows user save alignment job status at any time and return to the job at a later time.

User friendly reportsSave alignment reports in PDF, add photos of the unit, the company logo and work notes when necessary.

Thermal growth expansionAutomatic compensation system for the thermal growth expansion of machines allows to keep the efficiency of alignment in any environment.

Switchit™Simplify the measurements by selecting the machine location relative to an operator.

Technical Data

Dimensions	90mm x 60mm x 32mm(3,5 in x 2,3 in x 1,2 in)
Laser emission	diode laser with wavelength 635nm, class II, <1 mW
Distance between units	up to 10 m (33 ft)
Detector receiver length	30 mm (1,2 in)
Detector type	last generation of industrial linear sensor
Detector resolution	0,001 mm
Measuring accuracy	0.3% ± 7um
Protection class	IP65 (Dust-tight and protected against water jets)
Time of operation	up to 20 hours
Bluetooth	4.0
Operating temperature	from -10 º С to +55 º С (14 to 122°F)
